Overview

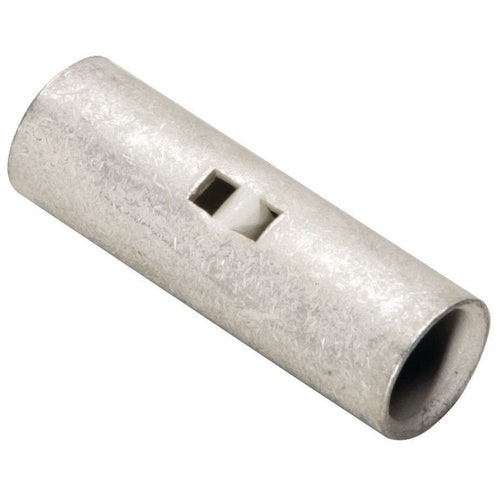

Burndy YSV14BOX 14Awg Butt Splice

Product Specifications

• UPC: 78181054370
• Material: Seamless Electrolytic Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Wire Strip Length 1/4 Inch
• Catalog Number: YSV14BOX
• Brand Name: HYLINK[TM]
• Model: YSV
• Type: Butt
• Voltage Rating: 600 V
• Length: 0.64 Inch
• Conductor Size: 12 AWG Solid (Copper), 20 to 14 AWG Stranded (Copper), 20 to 14 AWG (Aircraft)
• Insulation Type: Non-Insulated
• Catalog Description: HYLINK UNINSULATED COMPRESSION BUTT SPLICE; ACCOMMODATES: #20 - #14 AWG STR/SOL, AIRCRAFT/NAVY; LENGTH: .64"; 600 V - 35KV
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; Seamless Electrolytic Tin Plated Copper Material; 0.64 Inch; UL, CSA Approval; 600 V Voltage Rating; 12 AWG Solid (Copper), 20 to 14 AWG Stranded (Copper), 20 to 14 AWG (Aircraft) Conductor Size; Non-Insulated Insulation Type; HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 1/4 Inch; YSV Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 781810543702
• SKU Name: bur ysv14box
