Overview

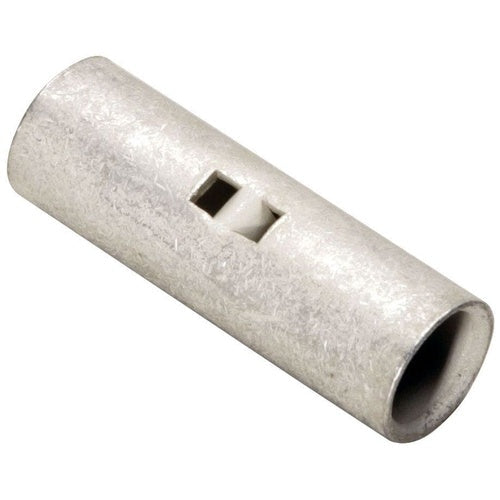

Burndy YSV25LBOX 1/0 Butt Splice

Product Specifications

• Catalog Description: UNINSULATED SPLICE FOR 1/0 AWG.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt, Short Barrel Type; Seamless Electrolytic Tin Plated Copper Material; 1.53 Inch Barrel Length; UL, CSA Approval; 600 V Voltage Rating; 1/0 AWG Solid/Stranded (Copper), 1/0 AWG (Aircraft) Conductor Size; Non Insulated Insulation Type; 0.56 Inch Barrel Outer Diameter; HYLINK[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 11/16 Inch; Die Index 43; Application Aircraft, Light Duty Industrial, General Purpose; YSV Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 781810534908
• SKU Name: bur ysv25lbox
