Overview

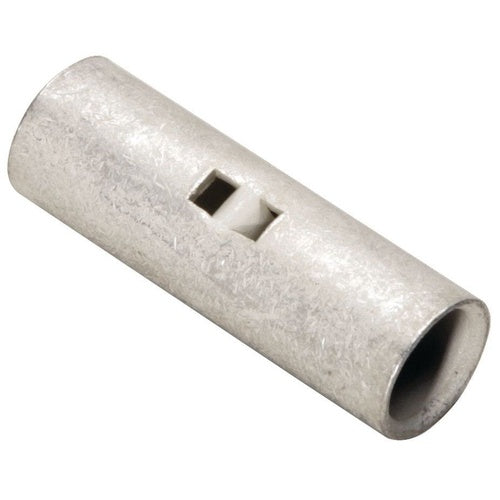

Burndy YSV6CLBOX 6Awg Butt Splice

Product Specifications

• UPC: 78181053470
• Material: Seamless Electrolytic Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Wire Strip Length 5/8 Inch
• Catalog Number: YSV6CLBOX
• Brand Name: HYLINK[TM]
• Model: YSV-L
• Type: Butt, Short-Barrel
• Voltage Rating: 600 V
• Length: 1.12 Inch
• Conductor Size: 6 AWG Solid/Stranded (Copper), 6 AWG (Aircraft)
• Insulation Type: Non-Insulated
• Catalog Description: HYLINK UNINSULATED COMPRESSION BUTT SPLICE; SEAMLESS STANDARD BARREL; ACCOMMODATES: #6 AWG STR/SOL, AN, AIRCRAFT; LENGTH: 1.12" ; 600 V MAX
• Category: Large Terminals & Connectors
• Full Technical Description: Butt, Short-Barrel Type; Seamless Electrolytic Tin Plated Copper Material; 1.12 Inch; UL, CSA Approval; 600 V Voltage Rating; 6 AWG Solid/Stranded (Copper), 6 AWG (Aircraft) Conductor Size; Non-Insulated Insulation Type; HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 5/8 Inch; YSV-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 781810534700
• SKU Name: bur ysv6clbox
