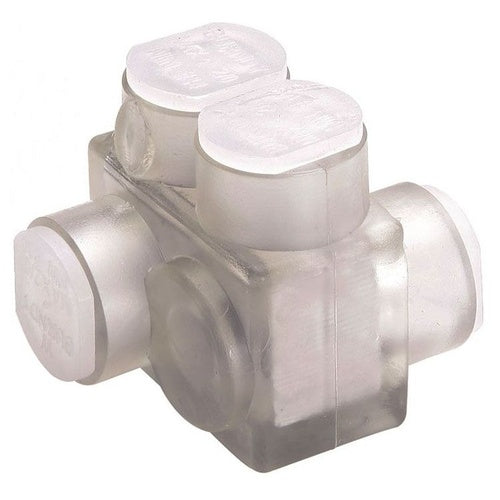

BITO250, Opp. Side, 2-Cond. Clear Ins. MultiTap

Product Specifications

• Full Technical Description: Clear Plastisol Covered Multiple Tap Connector, 2-Port, Opposite Side Entry. #10 AWG-250 kcmil, Al/Cu Rated.
• Part Number: BITO250
• UPC: 781810134078
• GTIN: 00781810134078
• Manufacturer Brand: Burndy
• Features: Type BIT and BITO (Offset) Multi-tap connectors are installed quickly and easily; Suitable for use on Code conductor; UL486B Listed, Dual-rated AL9CU.
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Connector Type: Multi Tap
• Hex Key: 5/16 in
• Insulation: Y
• Insulation Type: Plastisol
• Material: Aluminum
• Material - Hardware: Aluminum
• Number Of Ports: 2
• Physical Attribute - Number of Screws: 2
• Physical Attribute - Screw Type: Allen
• Plated: No
• Plating Type: Unplated
• Product Family: MECHANICAL
• Product Type: Run/Tap
• Sub Brand: UNITAP
• Temperature Rating: 90°C
• Trade Name: UNITAP™
• Type: BIT
• Dimension - Height fraction: 2.125 in
• Dimension - Height inch: 2.13 in
• Dimension - Height mm: 54.10 mm
• Dimension - L Length Overall mm: 52 mm
• Dimension - Length Overall inch: 2.03 in
• Dimension - Width inch: 2.64 in
• Dimension - Width mm: 67 mm
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Operating Voltage: 600 V
• Voltage - Maximum: 600 V
• Conductor - AL Str Size Range: 10 AWG - 250 kcmil
• Conductor - Copper Str Size: 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Str Size Range: 10 AWG - 250 kcmil
• Conductor Size: 10 AWG-250 KCMIL
• Conductor Type: AL C Str-Size CU C Str-Size
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Listed Direct Burial: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 100
• Minimum Pack Quantity: 1
• Pallet Quantity: 3200
