Product information
Overview

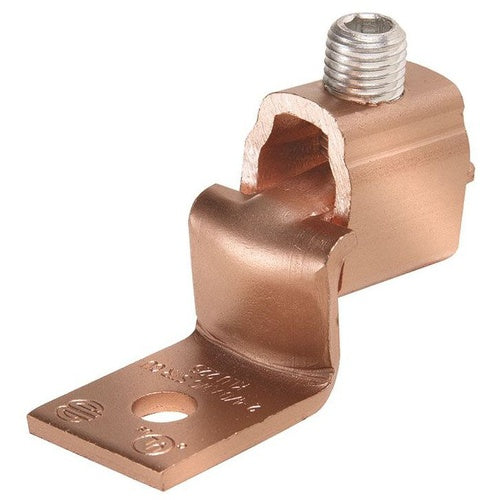

BURNDY KLU300 Terminal/Offset Tongue 1/0AWG 2.83In
Product Specifications
- Full Technical Description: Terminal/Offset Tongue 1/0AWG 2.83In | AB6RCC | 22C144
- Catalog Number: KLU300
- Manufacturer: BURNDY
- Height: 2.54 cm
- Length: 2.54 cm
- Width: 2.62 cm
- HS Code: 8535908020
- Country Of Origin: IN
- Weight: 0.135 kg
- Model: 22C144
- Body Material: Copper
- Color: Bare
- Compatible With Product Type: Copper Cable
- Connection Orientation: Offset Tang
- Connector Type: Terminal
- Contact Finish: Unplated
- For Conductor Material: Copper
- For Stranded Copper Wire Size: 350 kcmil
- For Stud Size: 3/8"
- Head Type: Hex
- Hole Dia.: 0.39"
- Hole Spacing: Not Applicable
- Length (straight Wireway): 2.83"
- Material: Copper
- Max. Conductor Size: 350 kcmil
- Min. Conductor Size: 1/0 AWG
- No. Of Conductors: 1
- No. Of Holes: 1
- Overall Depth: 1"
- Screw Size: 5/8"
- Strip Length: 1 5/8"
- Stud Size: 3/8"
- Terminal Material: Copper
- Tongue Width: 1.1"
- Type: Commercial
