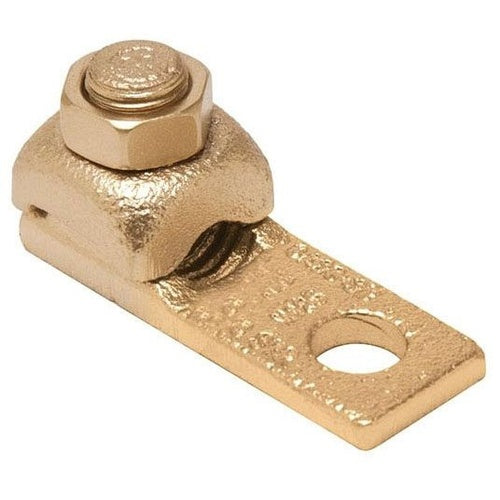

QB1C, 1-Hole, Heavy Duty Copper Terminal

Product Specifications

• Full Technical Description: Side Entry Heavy Duty Copper Lug, Cable at Right Angle to Terminal Block. 1-Hole, 1/4" Stud. #4-#1 AWG Str. One clamping element per conductor.
• Part Number: QB1C
• UPC: 781810324042
• GTIN: 00781810324042
• Manufacturer Brand: Burndy
• Features: Side Entry terminal; Joins a range of cable at right angles to terminal blocks; One-wrench installation
• Application: For Joining A Range Of Copper Cable At Right Angles To Terminal Blocks
• Connector Type: Right Angle
• Installation Torque Recommended in-lb: 150 LBS/in
• Material: Copper
• Physical Attribute - Number of Clamping Elements: 1
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Number of Screws: 1
• Physical Attribute - Screw Type: Hexagonal Bolt
• Plated: No
• Plating Type: Unplated
• Product Family: MECHANICAL
• Product Type: Terminal
• Sub Brand: QIKLUG
• Trade Name: QIKLUG™
• Type: Bolted Lugs & Terminals
• Dimension - B Length fraction: 7/8 in
• Dimension - B Length inch: 0.88 in
• Dimension - Bolt Size fraction: 1/4
• Dimension - D inch: 0.81 in
• Dimension - Height inch: 1.00 in
• Dimension - Height mm: 25.4 mm
• Dimension - Hole Size fraction: 9/32
• Dimension - Hole Size inch: 0.28 in
• Dimension - Hole Size mm: 7 mm
• Dimension - L Length Overall mm: 38 mm
• Dimension - Length Overall inch: 1.50 in
• Dimension - N inch: 0.34 in
• Dimension - Pad Width fraction: 11/16 in
• Dimension - Pad Width inch: 0.63 in
• Dimension - Stud Size fraction: 1/4
• Dimension - Width inch: 0.625 in
• Dimension - Width mm: 16 mm
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Weight: 0.13 lb
• Conductor - Copper Str Size: 4 AWG;3 AWG;2 AWG;1 AWG
• Conductor - Copper Str Size Range: 4 AWG-1 AWG
• Conductor Size: 4-1 AWG
• Conductor Type: CU C Str-Size
• Number of Conductors: 1
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: No
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• UL Listed: Yes
• Carton Quantity: 25
• Minimum Pack Quantity: 1
• Pallet Quantity: 12000
