Overview

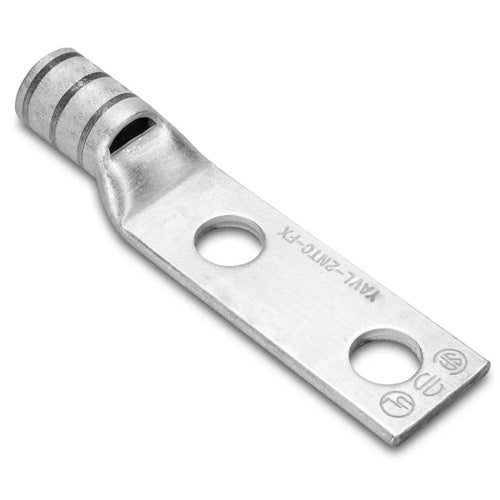

Burndy YA34L2NTCFX 350Mcm 2-Hole Lug

Product Specifications

• Catalog Description: 350 KCMIL G,H,I,K,M,373 DLO CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 19 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 5.06 Inch Overall Length; 1.27 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 925/24 Diesel Locomotive Cable, 350 kcmil Class G/H/I (Flex), 373.7 kcmil Conductor Size; 1/2 Inch Stud Size; 19/470 Die Index; 1.55 Inch W X 0.23 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L-2TC Model
• Part Number: YA34L2NTCFX
• UPC: 78181001848
• UPC 12 Digit: 781810018484
• Pad Size: 1.55 Inch W x 0.23 Inch Thk
• Number of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Blue
• Die Index: 19/470
• Material: Electro-Tin Plated Copper
• Overall Length: 5.06 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled Entry, Chamfered
• Brand Name: HYLUG[TM]
• Model: YA-L-2TC
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 925/24 Diesel Locomotive Cable, 350 KCMIL Class G/H/I (Flex), 373.7 KCMIL
• Barrel Type: Short, Standard, Straight
• Barrel Length: 1.27 Inch
• Made in USA: Yes
• Manufacturer: BURNDY PRODUCTS
• Proposition 65 Warning (CA): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
• UNSPSC: 39121405
