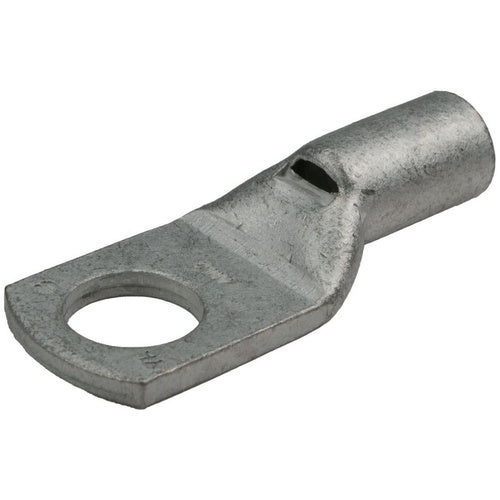

YAV25LBOX, Ring Terminal, 1/0 AWG, 1-Hole, 3/8" Stud

Product Specifications

• Full Technical Description: Copper Compression Lug, Heavy Duty, Ring Tongue, 1 Hole w/ Inspection Hole, AN-1/0 Flex, 3/8" Stud, Short Barrel, Tin Plated.
• Part Number: YAV25LBOX
• UPC: 781810540008
• GTIN: 00781810540008
• Manufacturer Brand: Burndy
• Features: Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping; Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor; Double thick tongue structurally a very strong terminal tongue; Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects; Internally bevelled barrel for easy cable entry, especially for flexible conductors; Inspection hole provides easy visual check for proper conductor insertion; Electro-tin plated for a long lasting durable corrosion resistance
• Application: Industrials, Hospitals, Utilities, Marine, Computer
• Application - For Use On: Copper Commercial (Code) Cable, Type AN Aircraft Cable, Extra Flexible Conductors
• Connector Type: Ring Terminal
• Die Index: 43
• Feature - Barrel Style: Chamfered Skived
• Feature - Barrel Type: Standard
• Material: Copper
• Material Composition: DLP Copper Tin Plating
• Military Specification: AS20659
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Plated: Yes
• Plating Type: Tin
• Product Family: COMPRESSION
• Product Type: Terminal
• Sub Brand: HYLUG
• Trade Name: HYLUG™
• Type: Ring Tongue
• Dimension - B Length fraction: 11/16 in
• Dimension - B Length inch: 0.66 in
• Dimension - Bolt Hole Size inch: 0.39 in
• Dimension - Bolt Size fraction: 3/8
• Dimension - D inch: 0.85 in
• Dimension - Hole Size mm: 10 mm
• Dimension - Length Overall inch: 2.03 in
• Dimension - N inch: 0.42 in
• Dimension - Outside Diameter inch: 0.56 in
• Dimension - Pad Width inch: 0.83 in
• Dimension - Strip Length inch: 11/16 in
• Dimension - Stud Size inch: 3/8
• Dimension - Z (inch): 0.43 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Physical Attribute - Tongue Angle: Straight
• Conductor - Copper Str Aircraft Size: AN 0
• Conductor - Copper Str Aircraft Size Range: AN 0
• Conductor - Copper Str Size: 1/0 AWG
• Conductor - Copper Str Size Range: 1/0 AWG
• Conductor Size: 1/0 AWG
• Conductor Type: CU C Solid-Size CU C Str-Size
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL467 Military Specified (Mil-Spec)
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 10
• Minimum Pack Quantity: 1
