Burndy yse10box

Overview

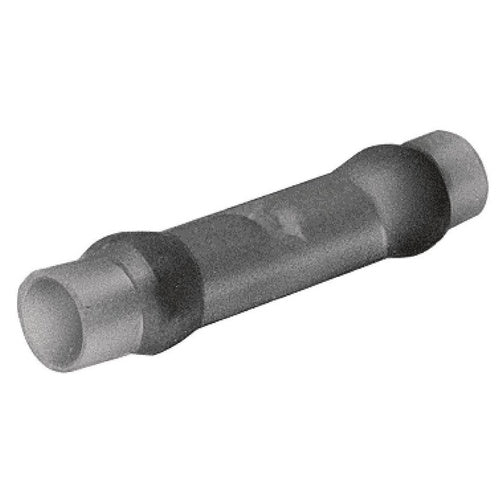

YSE10BOX, Nylon Splice For 12 - 10 AWG

Product Specifications

• Part Number: YSE10BOX
• UPC / GTIN: 781810566305
• Manufacturer Brand: Burndy
• Features: Manufactured from tin plated, seamless electrolytic copper tubing with integral barrel/insulation grip - providing maximum conductivity and tensile strength along with excellent cable support and strain relief; Split heavy wall insulation grip for stronger insulation grip and strain relief; Smooth funnel entry for easy wire insertion; Transpararent nylon insulation for easy wire insertion
• Application: For Splicing Aircraft And Commercial Flexible Cables
• Color Code: Yellow
• Connector Type: Seamless Butt Splice
• Insulation: Y
• Insulation Type: Nylon
• Material: Copper
• Plated: Yes
• Plating Type: Tin
• Product Family: COMPRESSION
• Product Type: Splice
• Sub Brand: INSULINK
• Temperature Rating: 105
• Trade Name: INSULINKTM
• Type: YSE
• UPC: 781810566305
• UPC 14 Digit GTIN: 00781810566305
• Cable Insulation Diameter Maximum: 0.209 in
• Dimension - B Length fraction: 3/10 in
• Dimension - B Length inch: 0.30 in
• Dimension - Diameter Max Size inch: 0.22 in
• Dimension - L Length Overall mm: 29 mm
• Dimension - Length Overall inch: 1.15 in
• Dimension - Outside Diameter inch: 0.21 in
• Dimension - Strip Length inch: 23/64 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Voltage - Maximum: 600 V
• Conductor - Copper Str Aircraft Size: AN 12;AN 10
• Conductor - Copper Str Aircraft Size Range: AN 12-AN 10
• Conductor - Copper Str Size: 12;10
• Conductor - Copper Str Size Range: 12-10
• Conductor Size: 12 - 10 AWG
• Conductor Type: CU C Str-Size
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL486
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 600
• Minimum Pack Quantity: 50
• Pallet Quantity: 99999
