Burndy ysp2ct

Overview

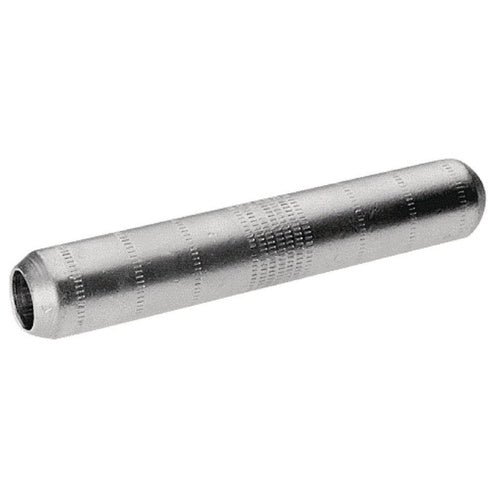

YSP2CT, Compression Splice, 2 AWG Cu, Tapered End

Product Specifications

• Part Number: YSP2CT
• UPC / GTIN: 781810001271
• Manufacturer Brand: Burndy
• Features: Copper seamless barrel designed with tapered ends per EEI Standard TD160, for use on voltages 5kV through 35kV, this aids in preventing corona emission and simplifies taping for lower installation cost; Barrel also features internal chamfer at wire entry to ensure smooth insertion of wire, preventing possible damage of the wire strands during insertion; Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Application: Wire Splice
• Color Code: Brown
• Connector Type: LONG BARREL
• Die Index: 10
• Feature - Barrel Style: Tapered
• Feature - Barrel Type: Standard
• Finish Type: Tin-Plated
• Material: Copper
• Plated: Yes
• Plating Type: Electro-Tin plated
• Product Family: COMPRESSION
• Product Type: Splice
• Sub Brand: HYLINK
• Trade Name: HYLINKTM
• Type: YSP-T, High Voltage, Long Barrel
• UPC: 781810001271
• Dimension - B Length inch: 1.11 in
• Dimension - L Length Overall mm: 55 mm
• Dimension - Length Overall inch: 2.15 in
• Dimension - Strip Length inch: 1.0 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Voltage Rating: 35 kV
• Conductor - Copper Str Size: 2 AWG
• Conductor - Copper Str Size Range: 2 AWG
• Conductor - Material: COPPER
• Conductor Size: 2 AWG
• Conductor Type: CODE
• Wire Size: #2 AWG
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: Yes
• Certification - ETL: No
• Standards - RoHS Compliance Status: EX
• UL Listed: Yes
• Carton Quantity: 100
• Minimum Pack Quantity: 1
• Pallet Quantity: 46400
