Burndy ysv18box

Overview

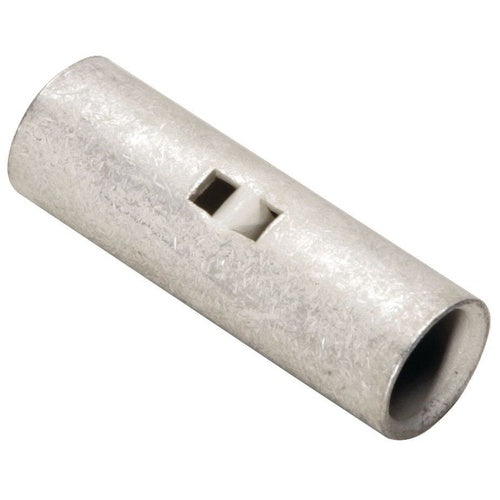

YSV18BOX, Uninsulated Splice For 22 - 18 AWG

Product Specifications

• Part Number: YSV18BOX
• UPC / GTIN: 781810543801
• Manufacturer Brand: Burndy
• Features: Manufactured from seamless tubing; High quality design with no seams to split; Electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties; Electro-tin plating provides durable long lasting resistance to corrosion; Positive center wire stops for proper dept of wire insertion; Marked with wire size providing easy wire size identification; HYLINK splice connectors feature inspection holes providing easy visual inspection of proper wire insertion
• Application: For All Heavy Duty Industrial And General Purpose Applications
• Connector Type: Seamless Butt Splice
• Feature - Barrel Style: Chamfered
• Material: Copper
• Plated: Yes
• Plating Type: Tin
• Product Family: COMPRESSION
• Product Type: Splice
• Sub Brand: HYLINK
• Trade Name: HYLINKTM
• Type: Splice
• UPC: 781810543801
• UPC 14 Digit GTIN: 00781810543801
• Dimension - L Length Overall mm: 16 mm
• Dimension - Length Overall inch: 0.62 in
• Dimension - Outside Diameter inch: 0.12 in
• Dimension - Strip Length inch: 1/4 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Voltage - Maximum: 35000 V
• Conductor - Copper Solid Size: 20;18
• Conductor - Copper Str Aircraft Size: AN 22;AN 20;AN 18
• Conductor - Copper Str Size: 22;20;18
• Conductor Size: 22 - 18 AWG
• Conductor Type: CU C Str-Size CU C Solid-Size CU C Str Aircraft-Size
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 1200
• Minimum Pack Quantity: 100
• Pallet Quantity: 99999
