Burndy ysv4clbox

Overview

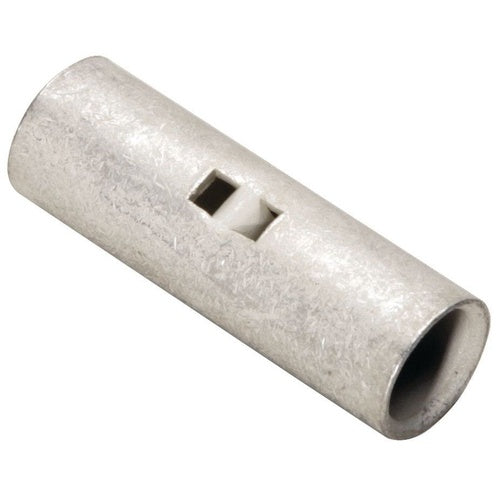

YSV4CLBOX Uninsulated Compression Splice Reducer, 600 V, 4 AWG Conductor

Product Specifications

• Catalog Number: YSV4CLBOX
• UPC / GTIN: 781810534755
• Manufacturer Brand: BURNDY®
• UNSPSC: 39121449
• Features: Manufactured from seamless tubing; High quality design with no seams to split; Electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties; Electro-tin plating provides durable long lasting resistance to corrosion; Marked with wire size providing easy wire size identification; HYLINK splice connectors feature inspection holes providing easy visual inspection of proper wire insertion
• Barrel Size: 0.38 in Dia
• Barrel Type: Short
• Conductor Size: 4 AWG
• Conductor Type: Commercial/Aircraft Stranded Copper | Solid/Stranded Copper
• Country of Origin: United States of America | United States of America (the)
• Dimensions: 1.12 in L
• Finish: TiN Coated | Tin-Plated
• Length: 1.12 in
• Material: Copper
• Specifications: 0.38 inch Outside Diameter | 5/8 in L Wire Strip
• Type: Type YSV-L Uninsulated | Uninsulated
• Voltage Rating: 600 V | 600 V AC | 600 VAC
