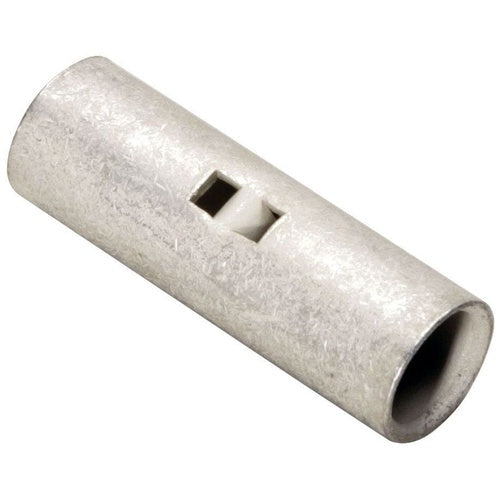

YSV9CLBOX, Uninsulated Splice For 9 AWG

Product Specifications

• Full Technical Description: Uninsulated Splice For 9 AWG.
• Part Number: YSV9CLBOX
• UPC: 781810534304
• GTIN: 00781810534304
• Manufacturer Brand: Burndy
• Features: Manufactured from seamless tubing; High quality design with no seams to split; Electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties; Electro-tin plating provides durable long lasting resistance to corrosion; Positive center wire stops for proper dept of wire insertion; Marked with wire size providing easy wire size identification; HYLINK splice connectors feature inspection holes providing easy visual inspection of proper wire insertion
• Application: For Aircraft, Light Duty Industrial And General Purpose Applications
• Connector Type: Seamless Butt Splice
• Feature - Barrel Style: Chamfered
• Material: Copper
• Plated: Yes
• Plating Type: Tin
• Product Family: COMPRESSION
• Product Type: Splice
• Sub Brand: HYLINK
• Temperature Rating: 90
• Trade Name: HYLINK™
• Type: Splice
• Dimension - B Length fraction: 1/3 in
• Dimension - B Length inch: 0.31 in
• Dimension - L Length Overall mm: 19 mm
• Dimension - Length Overall inch: 0.75 in
• Dimension - Outside Diameter inch: 0.23 in
• Dimension - Strip Length inch: 5/16 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Voltage - Maximum: 600 V
• Conductor - Copper Solid Size: 9
• Conductor - Copper Solid Size Range: 9
• Conductor - Copper Str Aircraft Size: AN 9
• Conductor - Copper Str Aircraft Size Range: AN 9
• Conductor - Copper Str Size: 9
• Conductor - Copper Str Size Range: 9 AWG
• Conductor Size: 9 AWG
• Conductor Type: CU C Str-Size CU C Solid-Size CU C Str Aircraft-Size
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 600
• Minimum Pack Quantity: 50
• Pallet Quantity: 99999
