Overview

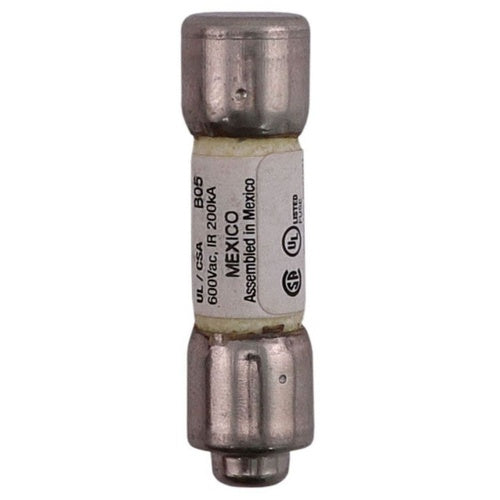

FNQR9 - 9A CC TD Fuse

Product Specifications

• Full Technical Description: BUSS FNQ-R-9 CLASS CC TIME DELAY
• Catalog Number: FNQR9
• Manufacturer: Eaton
• UNSPSC: 39121606 - Cartridge fuses
• Amperage Rating: 9
• Connection: Ferrule End X Ferrule End
• Interrupt Rating: 200 kAIC
• Material: Melamine Tube
• Voltage Rating: 600 V
• Size: 13/32 In Diameter X 1-1/2 In Length
• Features: Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or
• Product Type: Class CC Time Delay
• Special Features: Rejection Style
• Dimensions: 1.5000 IN X 0.4100 IN X 0.4100 IN
• Fuse Class: Class CC
• Media: Yes
• Response Time: 12 S at 200%
• Manufacturers Part Number: FNQ-R-9
• UPC: 051712497084
• GTIN: 00051712497084
• Type: FUSE
• Carton: 10
• Application: Ind Facilities & Factories - Facility: Safety and Security Systems
• Standard: RoHS Compliant,CE Marked
