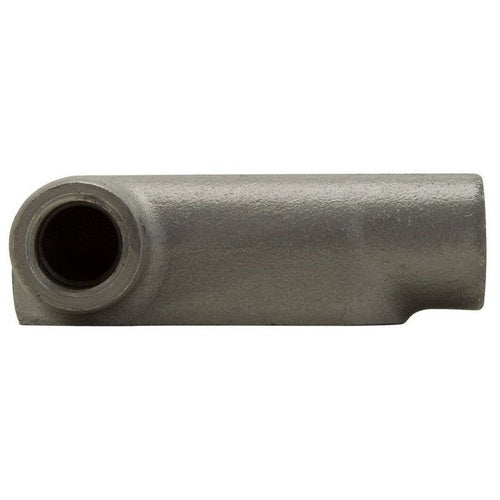

UNILETS™ LL97-SA Type LL Conduit Outlet Body, 3-1/2 in Hub, Form 7, 218 cu-in, Cast Aluminum, Epoxy Powder Coated

Product Specifications

• Catalog Number: LL97SA
• UPC: 781381606660
• Manufacturer Brand: Appleton®
• UNSPSC: 39131708
• Features: Smooth, rounded integral bushing in hubs protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations; Grayloy iron bodies with cast covers and gasket are approved for use in wet locations; Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling, and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub bushings and cover openings protect conductor insulation
• Capacity: 218 cu-in
• Connection Type: Tapered FNPT
• Country of Origin: Mexico
• Dimensions: 12.69 in L x 6.94 in W x 6.56 in H
• Enclosure: NEMA FB-1
• Finish: Epoxy Powder Coated
• Form: Form 7
• Hub Size: 3-1/2 in
• Material: Cast Aluminum
• Mounting Type: Surface
• Number of Hubs: 2
• Type: Type LL
