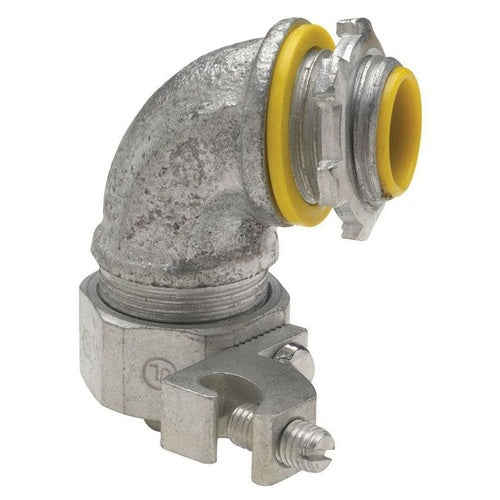

Crouse-Hinds LTB7590GC 3/4" 90D Liquidtight Connector

Overview

High-tensile strength for enhanced durability, Ergonomic design for improved user comfort, Precision-engineered components for accurate performance

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES LIQUIDATOR LIQUIDTIGHT CONNECTOR, FMC, 90 ANGLE, COPPER GROUND LUG, INSULATED, #4-14 AWG LUG SIZE, MALLEABLE IRON, 3/4"
• Full Technical Description: 90 Deg Type; Zinc Electroplate Malleable Iron (Body), Malleable Iron/Aluminum (Gland Nut), Steel (Ferrule), Polyethylene (Gland Nut Sealing Ring), Thermoplastic Elastomer (Sealing Gasket), Steel/Aluminum (Locknut), Copper (Grounding Lug) Material; Flexible Metallic Conduit Used on; UL 467/514B, CUL C22.2 Approval; 10 Standard Package; 3/4 Inch Trade Size; Insulated Throat Type; LIQUIDATOR[TM] Brand; Applicable Standard NEC; Application Hazardous Location, Wet Location, Industrial; Constructional Feature Liquidtight, Raintight, Oiltight, Dusttight, Corrosion Resistant; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Size 1.563 Inch OD; Lug Size 14 to 4 AWG; LT Model
• Manufacturer: EATON CROUSE-HINDS COMMERCIAL
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39131707
• UPC 12 Digit: 784564253248
• SKU Name: MIDWEST LTB7590GC
