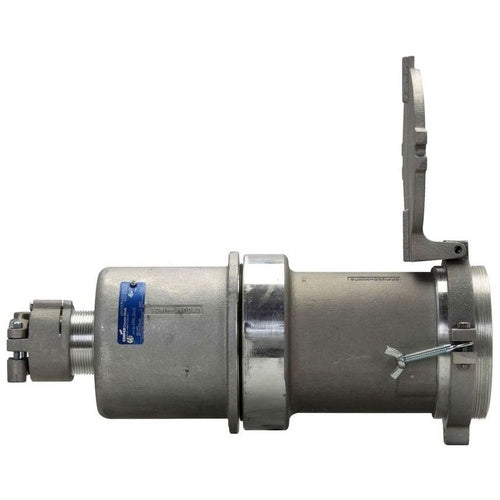

Crouse-Hinds APR204212 200A 600Vac Connector

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE APR CONNECTOR, 200A, 1.875-2.500", THREE-WIRE, FOUR-POLE, 50-400 HZ, STYLE 2, COPPER-FREE ALUMINUM, CRIMP/SOLDER, 600 VAC/250 VDC, 0.75"
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 1.875 Inch min. Cable Outer Diameter; 2.5 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 200 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant, Weatherproof; 2, Shell, Extra Pole Grounding Style; ARKTITE[R] Brand; Size 15-7/8 Inch L; Enclosure NEMA 3R; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; APR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121402
• UPC 12 Digit: 782274191126
• SKU Name: crsh apr204212

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
