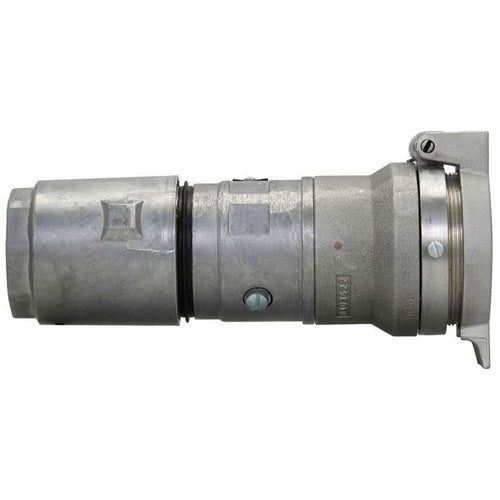

Crouse-Hinds APR3465 3W-4P Receptacle

Overview

Crouse-Hinds APR3465 3W-4P Receptacle

Product Specifications

• Catalog Description: 30 AMP 3 WIRE 4 POLE ARKTITE CABLE CONNECT RECEPTACLE .87 TO 1.02
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Copper-Free Aluminum Material; 0.87 Inch min. Cable Outer Diameter; 1.02 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 Volt AC at 50 to 400 Hertz, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 4 Pole(S); Corrosion Resistant, Dirt Tight, Dust Tight, Water Tight, Moisture Resistant; 2, Shell, Extra Pole Grounding Style; ARKTITE[R] Brand; Overall Dimension 8-1/4 Inch Length X 2-9/16 Inch Width; Enclosure Rating NEMA 4; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; APR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121402
• UPC 12 Digit: 782274054803
• SKU Name: crsh apr3465
