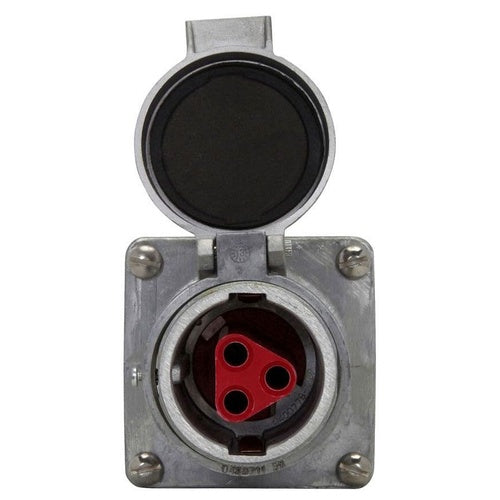

Crouse-Hinds AR631-S22 60A 3Wr 3P Receptacle Assembly

Overview

Crouse-Hinds AR631-S22 60A 3Wr 3P Receptacle Assembly

Product Specifications

• Full Technical Description: Polarized Type; High Impact Strength Natural Finished Copper Free Aluminum Material; 3 Wire(S); Industrial Grade; UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Watertight, Moisture Resistant; Spring Door; 1, Shell Grounding Style; ARKTITE[R] Brand; Size 4-1/4 Inch L X 4-1/4 Inch W X 5-1/4 Inch H; Screw Size 5/16 Inch-18 TPI; Enclosure NEMA 4; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; AR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle
• UPC 12 Digit: 782274419213
• SKU Name: crsh ar631s22

Resources

• Manufacturer Spec Sheet
