Product information
Overview

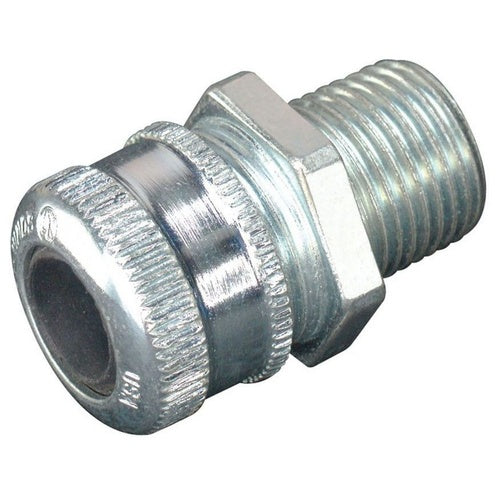

CGB3817 - Crouse-Hinds 3/8 in Trade Straight Cable Gland, 0.375 to 0.437 in Cable Opening, Steel, Chromate Coated/Electro-Plated Zinc
Product Specifications
- Catalog Number: CGB3817
- UPC: 782274137506
- Manufacturer: Crouse-Hinds
- Type: Straight Cable Gland
- Trade Size: 3/8 in
- Cable Range: 0.375 to 0.437 in
- Material: Steel, Chromate Coated/Electro-Plated Zinc
- Connection: Male NPT
- Application: Non-armoured and tray cables
- Temperature Rating: -25 to 40°C
- Approvals: UL 514-B, CSA 22.2
- Bushing Material: Neoprene
- Product Detail: General Purpose Use
- Manufacturer: Eaton
- Item Subcategory: Cable glands and cord grips
- Section: CGB2, CGE2 and CGFP Non-armored Glands
- Family: CGB
- Nema Rating: 3R 4
- Material: Steel
- Dimensions: 1.6 in x 0.88 in x 0.88 in (Length/Depth x Height x Width)
- Weight: 0.11
