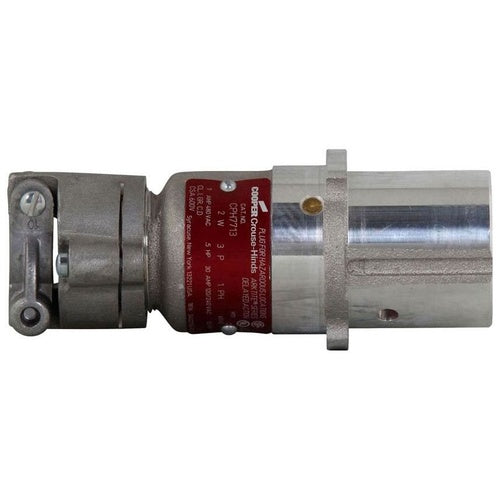

Crouse-Hinds CPH7733 2W-3P Plug

Overview

Crouse-Hinds CPH7733 2W-3P Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE CPH PLUG, 30A/60A, 0.500-0.875" CABLE DIAMETER, 2-WIRE, 3-POLE, BRASS OR HARD-DRAWN COPPER CONTACTS, STYLE 2, 3 HP, COPPER-FREE ALUM, SINGLE-PHASE, MECHANICAL CABLE GRIP AND NEOPRENE BUSH, 120-240/480 VAC
• Full Technical Description: Natural Finished Copper Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 0.875 Inch Max. Cable Outer Diameter; 2 Wire(S); 1 Phase(S); UL 1010, CSA C22.2 Approval; 120 to 240 VAC, 480 VAC Voltage Rating; Class I Div 1 and 2 Group C D Enclosure; 60 Ampere at 125 to 240 VAC, 30 Ampere at 480 VAC Current Rating; 3 HP at 125 to 240 Vac/480 VAC Power Rating; 3 Pole(S); Ces/Cesd Mating Receptacle; ARKTITE[R] Brand; Application Corrossive, Damp, Hazardous, Wet Location; Constructional Feature Explosionproof; Size 7-3/4 Inch L X 2-3/4 Inch W; CPH Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274173405
• SKU Name: crsh cph7733

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
