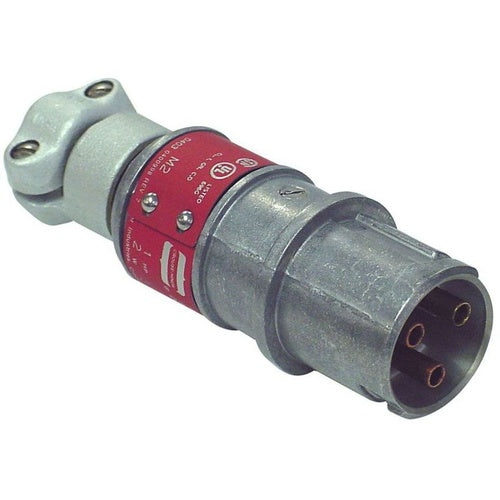

Crouse-Hinds CPP4752 3W-4P Plug

Overview

Crouse-Hinds CPP4752 3W-4P Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE CPP PLUG, 7A/30A, 0.375-0.875" CABLE DIAMETER, THREE-WIRE, FOUR-POLE, BRASS CONTACTS, 60 HZ, STYLE 2, 1 HP/3 HP, COPPER-FREE ALUM, FACTORY SEALED, DELAYED ACTION CIRCUIT BREAKING, 125-250 VAC/480 VAC
• Full Technical Description: Acrylic Painted Copper Free Aluminum Material; 0.375 Inch min. Cable Outer Diameter; 0.875 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1203, CSA C22.2 Approval; 125 to 250 VAC, 480 VAC Voltage Rating; Class I Div 1 and 2 Group C D Enclosure; 30 Ampere at 125 to 250 VAC, 7 Ampere at 480 VAC Current Rating; 3 HP at 125 to 250 VAC, 1 HP at 480 VAC Power Rating; 4 Pole(S); Cps Mating Receptacle; ARKTITE[R] Brand; Application Corrossive, Damp, Hazardous, Wet Location; Constructional Feature Explosionproof; CPP Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274175904
• SKU Name: crsh cpp4752

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
