Overview

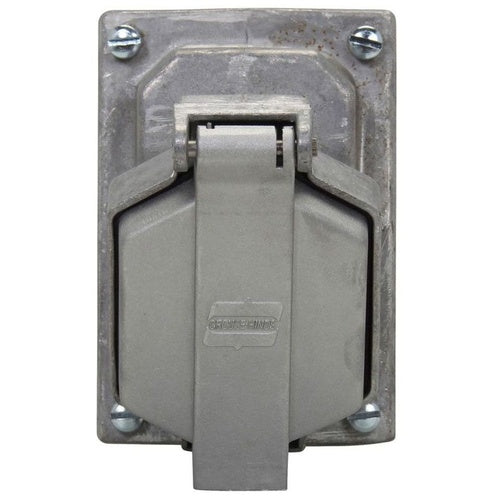

Crouse-Hinds CPS152R 2W-3P Receptacle

Product Specifications

• UPC: 78227418220.0
• Natural Copper-Free Aluminum Material
• 2 Wire(S)
• UL 894/698/1203, CSA C22.2 Approval
• 125 to 250 Volt AC at 60 Hertz, 18 Volt DC Voltage Rating
• Class I Div 1 and 2 Group C D Enclosure
• 20 Amp Current Rating
• 1 HP Power Rating
• 3 Pole(S)
• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE CPS RECEPTACLE, 20A, TWO-WIRE, THREE-POLE, BRASS CONTACTS, 60 HZ, STYLE 2, 1 HP, COPPER-FREE ALUMINUM, FACTORY SEALED, DELAYED ACTION CIRCUIT BREAKING, 125-250 VAC/18 VDC
• SKU Name: CRSH CPS152R
