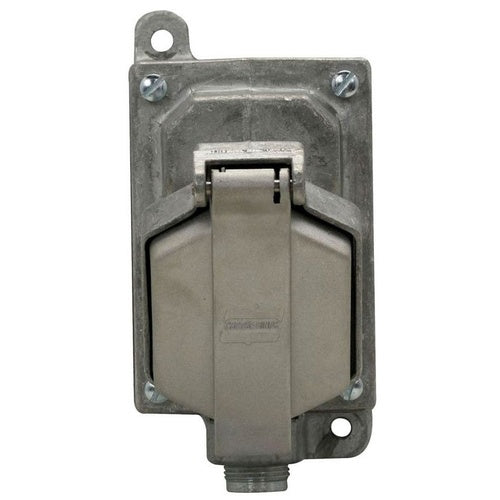

Crouse-Hinds CPS532-201 Receptacle Assembly

Overview

Crouse-Hinds CPS532-201 Receptacle Assembly

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE CPS RECEPTACLE ASSEMBLY, 7A/30A, DEAD END, 2-WIRE, 3-POLE, BRASS CONTACTS, 60 HZ, STYLE 2, 0.5 HP/1.5 HP, COPPER-FREE ALUM, SINGLE-GANG, FACT SEAL, 3/4", DELAY ACTION CIRCUIT BRK, 125-250 VAC/480 VAC
• Full Technical Description: Dead End Type; 3/4 Inch Hub Size; 2 Wire(S); UL 1203, CSA C22.2 Approval; 125 to 250 VAC at 60 Hz Voltage Rating; Class I Div 1 and 2 Group C D Enclosure; 30 Ampere Current Rating; 1-1/2 HP Power Rating; 3 Pole(S); Single Gang Box Type; Cpp Mating Plug; ARKTITE[R] Brand; Cable Diameter 0.375 to 0.875 Inch; Application Wet Location; CPS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274184104
• SKU Name: crsh cps532201

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
