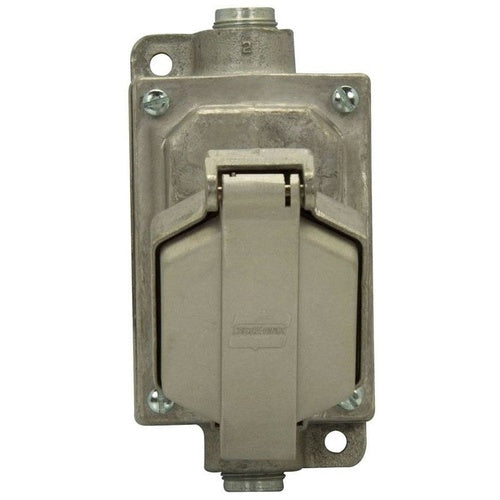

Crouse-Hinds CPS732-211 Receptacle Assembly
Product Specifications
- Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE CPS RECEPTACLE ASSEMBLY, 7A/30A, THROUGH FEED, 3-WIRE, 4-POLE, BRASS CONTACTS, 60 HZ, STYLE 2, 1 HP/3 HP, COPPER-FREE ALUM, SINGLE-GANG, FACTORY SEAL, 3/4", DELAY ACTION CIRCUIT BREAK, 125-250 VAC/480 VAC
- Full Technical Description: Feed Through Type; 3/4 Inch Hub Size; 3 Wire(S); UL 1203, CSA C22.2 Approval; 480 VAC at 60 Hz Voltage Rating; Class I Div 1 and 2 Group C D Enclosure; 7 Ampere Current Rating; 1 HP Power Rating; 4 Pole(S); Single Gang Box Type; Cpp Mating Plug; ARKTITE[R] Brand; Cable Diameter 0.375 to 0.875 Inch; Application Wet Location; CPS Model
- Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
- Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
- Unspsc: 39121406
- UPC 12 Digit: 782274185606
- SKU Name: crsh cps732211
