Product information
Overview

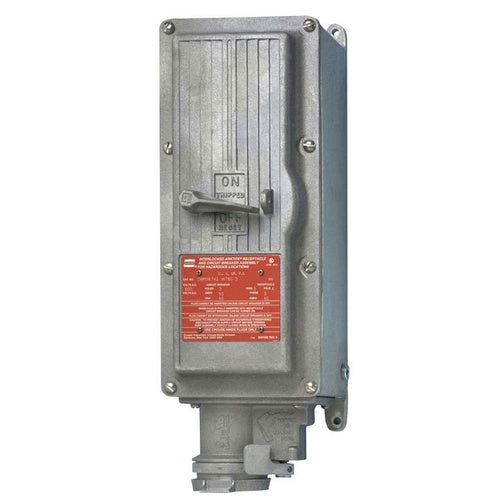

Crouse-Hinds DBR53742-WT50-3 3W4P 50A Receptacle
Product Specifications
- Full Technical Description: 7-1/4 Inch W X 8-1/8 Inch D X 21-3/4 Inch H Size; 1-1/2 Inch Hub Size; Copper Free Aluminum Enclosure Material; 1 Hub(S); UL 698, UL 1010 Approval; Class II Div 1 and 2 Group F G, Class III, NEMA 3/9FG/12 Enclosure; Dust/Ignition Proof, Water Tight; Natural Enclosure Finish; Top Hub Location; Fdb Breaker Type; 3 Breaker Pole(S); 600 VAC Breaker Voltage Rating; 50 Ampere Breaker Current Rating; Apj/Npj Mating Plug; 30 Ampere Receptacle Current Rating; 4 Pole 3 Wire Receptacle Configuration; ARKTITE[R] Brand; DBR Model
- Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
- Sub Category: Pin And Sleeve Receptacle With Circuit Breaker
- UPC 12 Digit: 782274041698
- SKU Name: crsh dbr53742wt503
