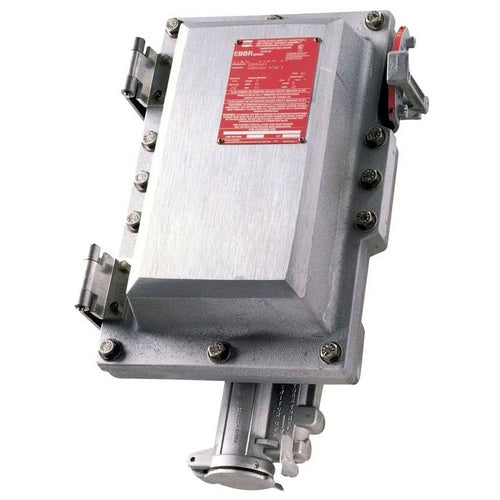

Crouse-Hinds EBBRA604-WT50-3 3P 50A Circuit Breaker & Receptacle

Overview

Crouse-Hinds EBBRA604-WT50-3 3P 50A Circuit Breaker & Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE EBBR INTERLOCKED RECEPTACLE, 60A, 50A CIRCUIT BREAKER, THREE-WIRE, FOUR-POLE, SOLID DOOR, WITH BREAKER, STYLE 2, CUTLER-HAMMER, COPPER-FREE ALUMINUM, SPRING DOOR, 1-1/2", 480 VAC/250 VDC
• Full Technical Description: 14.06 Inch W X 10.25 Inch D X 23.95 Inch H Size; 1-1/2 Inch Hub Size; Copper Free Aluminum Enclosure Material; UL 1203 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/7B/7C/7D/9F/9G/12 Enclosure; Explosion Proof, Dust Ignition Proof, Rain Tight; Natural Enclosure Finish; Extra Pole Grounding Style; 3 Breaker Pole(S); 480 Vac/250 VDC Breaker Voltage Rating; 50 Ampere Breaker Current Rating; Apj, Cph, Npj Mating Plug; 60 Ampere Receptacle Current Rating; 4 Pole 3 Wire Receptacle Configuration; CROUSE-HINDS[R] Brand; Applicable Standard NEC; EBBR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin And Sleeve Receptacle With Circuit Breaker
• Unspsc: 39121406
• UPC 12 Digit: 782274417967
• SKU Name: crsh ebbra604wt503

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
