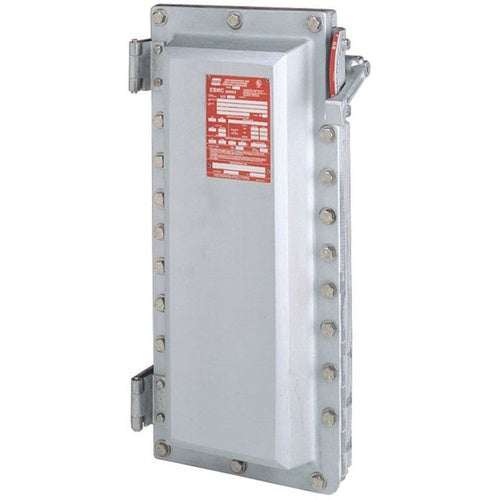

Crouse-Hinds EBMBB-FD-W60361 Breaker Encloure

Overview

Crouse-Hinds EBMBB-FD-W60361 Breaker Encloure

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EBM DISCONNECT SWITCH, 60A, WITH SWITCH, FUSED, 10 HP/15 HP, COPPER-FREE ALUMINUM, POLYPHASE, 200-600 VAC/250 VDC
• Full Technical Description: 14.46 Inch W X 10.25 Inch D X 26.9 Inch H Size; Rugged Cast Copper Free Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 440/480/550/600 VAC, 250 VDC Voltage Rating; Feet Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/3R/7B/7C/7D/9E/9F/9G/12 Enclosure; 60 Ampere Current Rating; Hinged Cover Type; 15 HP at 440/480/550/600 VAC, 10 HP at 250 VDC Power Rating; Dust-Ignitionproof, Explosionproof, Watertight, Wet Location; Handle Operator Type; Fusible Fuse Provision; Applicable Standard NEC, CEC; Application Indoor, Outdoor; EBM Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Disconnect Switch
• Unspsc: 39121318
• UPC 12 Digit: 782274613741
• SKU Name: crsh ebmbbfdw60361

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
