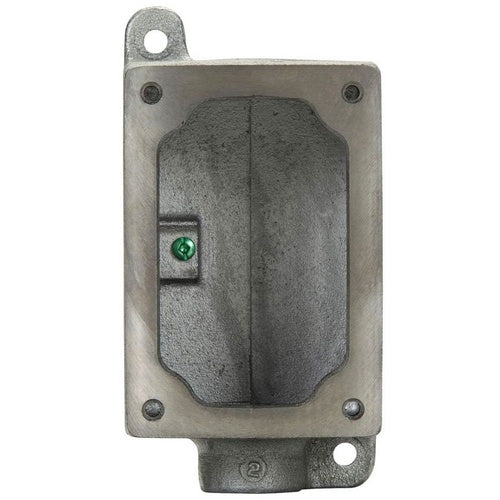

Crouse-Hinds EDS171 1-Gang Dead End Enclosure

Overview

Crouse-Hinds EDS171 1-Gang Dead End Enclosure

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES FLEXSTATION EDS BACK BOX, FERALOY IRON ALLOY, SINGLE-GANG, DEAD END, 1/2"
• Full Technical Description: Dead End Type; Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Body/Cover Material; 3-1/2 Inch W X 3-1/16 Inch D Size; Eds/Efs Series Control Station Used on; 1/2 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 1203 Approval; Feet Mounting; Class I Div 1 and 2 Group C D, Class I Div 2 Group B, Class II Div 1 and 2 Group E F G, Class III Zone 1 and 2 Group Iib, NEMA 3R/7B/7C/7D/9E/9F/9G/12 Enclosure; Deep Construction; FLEXSTATION[TM] Brand; Application Hazardous Location, Industrial, Indoor, Outdoor; EDS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39122209
• UPC 12 Digit: 782274871004
• SKU Name: crsh eds171

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
