Product information
Overview

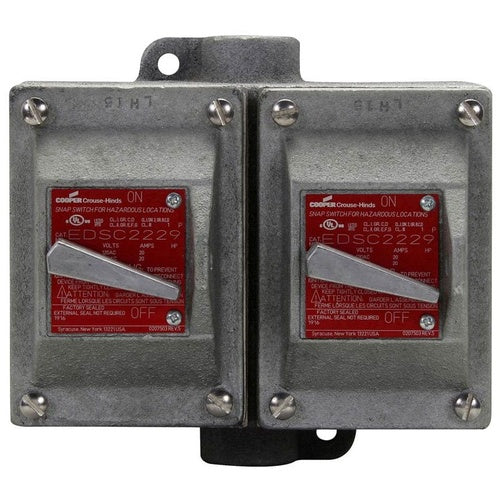

Crouse-Hinds EDSC2240 2-Gang Enclosure W/4Way Switch
Product Specifications
- Full Technical Description: Feed-Through Type; 4-Way Contact Configuration; 3/4 Inch Hub Size; Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Enclosure Material; UL 1203, CSA C22.2 Approval; 120/277 VAC Voltage Rating; Class I Div 1 and 2, Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure; 20 Ampere Current Rating; Explosionproof, Dust-Ignitionproof, Raintight; Front Operated Lever Operator Type; Black Nylon 6/6 Actuator Material; 2-Gang Box Type; Applicable Standard CEC, NEC; Shaft Material Natural Finished Stainless Steel; Application Wet Location; EDS Model
- Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
- Sub Category: Explosionproof Tumbler/Snap Switch Control Station
- UPC 12 Digit: 782274765747
- SKU Name: crsh edsc2240
