Overview

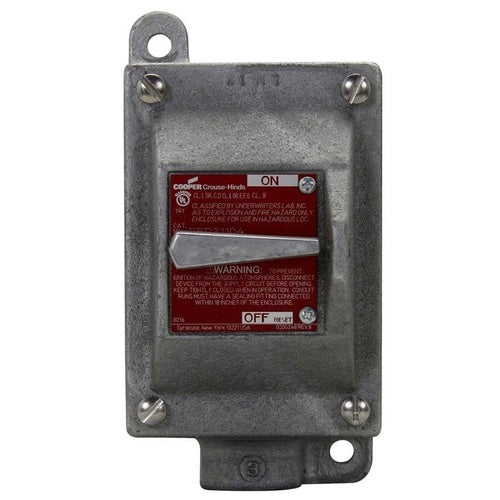

Crouse-Hinds EFD31104 1-Gang 15A Circuit Breaker & Enclosure

Product Specifications

• Full Technical Description: Bolted Enclosure Type; 1 Inch Hub Size; Feraloy Iron Alloy Enclosure Material; 1 Gang(S); 120/240 VAC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G/12 Enclosure; 15 Ampere Current Rating; 1 Pole(S); Dust-Ignitionproof, Explosionproof, Raintight; Electrogalvanized Aluminum Acrylic Painted Enclosure Finish; Dead End Hub Location; Qou, Square D Breaker Type; Non-Interchangeable, Thermal Magnetic Trip Type; Black Nylon 6/6 (Handle), Natural Finished Stainless Steel (Shaft) Shaft/Handle Material; Applicable Standard NEC; Size 3-1/2 Inch W X 3 Inch D X 6-3/32 Inch H; EFD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Enclosed Circuit Breaker
• UPC 12 Digit: 782274033099
• SKU Name: crsh efd31104

Resources

• Manufacturer Spec Sheet
