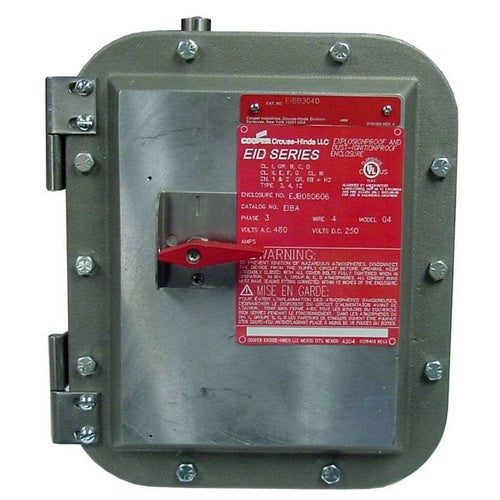

Crouse-Hinds EIDA3030 30A 600V Disconnect Switch Enclosure

Overview

Crouse-Hinds EIDA3030 30A 600V Disconnect Switch Enclosure

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EID DISCONNECT SWITCH, 30A, WITH SWITCH, NON-FUSED, 5 HP/10 HP/20 HP/30 HP, COPPER-FREE ALUMINUM, 240-600 VAC/250 VDC
• Full Technical Description: Switch Type; Copper-Free Aluminum Material; 10.47 Inch Width X 9.65 Inch Depth X 2.75 Inch Height Size; Natural Finish; UL 1203, CUL, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D Zone 1 and 2, Class II Div 1 Group E F G, Class III, NEMA 3/3R/4/7B/7C/7D/9E/9F/9G Enclosure; Eid Switch Type; 30 Amp Breaker/Switch Current Rating; Constructional Feature Explosionproof; Voltage Rating 600 Volt; Application Hazardous Location; EID Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL PRODUCTS
• Sub Category: Circuit Breaker/Disconnect Switch Enclosure
• Unspsc: 39121601
• UPC 12 Digit: 662276153660
• SKU Name: crsh eida3030

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
