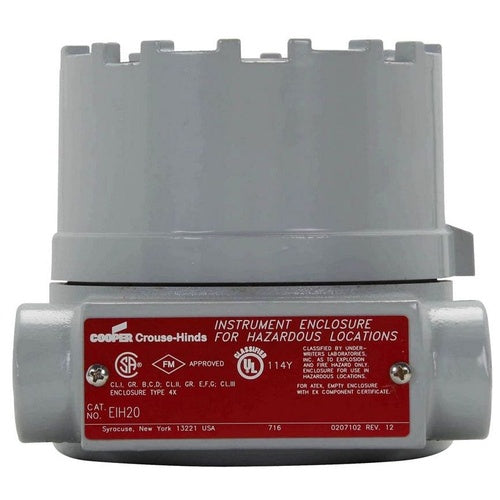

Crouse-Hinds EIH20 Enclosure Body W/ Std Cover

Overview

Crouse-Hinds EIH20 Enclosure Body W/ Std Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EIH INSTRUMENT ENCLOSURE, 2" COVER OPENING, STANDARD COVER, COPPER-FREE ALUMINUM, 3/4" TRADE SIZE
• Full Technical Description: 5 Inch Length X 4.25 Inch Width X 4.54 Inch Height Size; 2-Wire Transmitter, Flow Measurement Device, Temperature Control, Level Detector, Pressure Switch Used on; 3/4 Inch Hub Size; 2 Hub(S); UL 1203, CSA C22.2, FM, ATEX, IEC Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure; 2 Inch Standard Cover Type; Copper-Free Aluminum Body Material; Dust Ignitionproof, Explosionproof, Rain Tight, Water Tight; Lug Mounting Hardware; Copper-Free Aluminum Cover Material; Offset, Feed-Through Hub Location; Gray Epoxy Powder Coated Body Finish; Applicable Standard NEC, CEC, Nema/Eemac; EIH Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 782274414799
• SKU Name: crsh eih20

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
