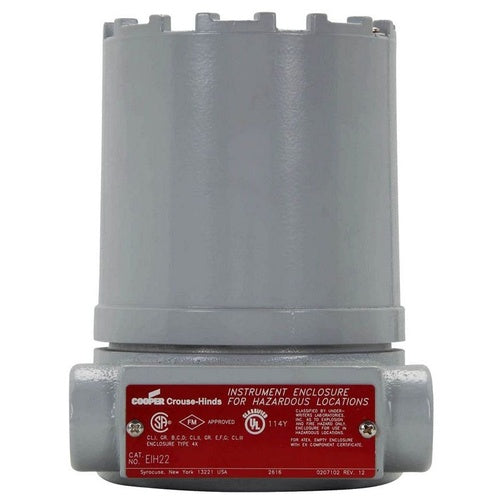

Crouse-Hinds EIH22 Enclosure Body W/ Dome Cover

Overview

Crouse-Hinds EIH22 Enclosure Body W/ Dome Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EIH INSTRUMENT ENCLOSURE, 4" COVER OPENING, DOME COVER, COPPER-FREE ALUMINUM, 3/4" TRADE SIZE
• Full Technical Description: 5.25 Inch W X 6.54 Inch D Size; Flow Measurement Device, Level Detector, Pressure Switch, Temperature Control, Two Wire Transmitter Used on; 3/4 Inch Hub Size; 2 Hub(S); UL 1203, CSA C22.2, FM Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7B/7C/7D/9E/9F/9G Enclosure; 4 Inch Dome Cover Type; Copper Free Aluminum Body Material; Dust-Ignitionproof, Explosionproof, Raintight, Watertight; Lug Mounting Hardware; Gray Epoxy Powder Coated Copper Free Aluminum Cover Material; Offset, Feed Through Hub Location; Gray Epoxy Powder Coated Body Finish; Applicable Standard NEC, CEC, Nema/Eemac; EIH Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 782274414829
• SKU Name: crsh eih22

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
