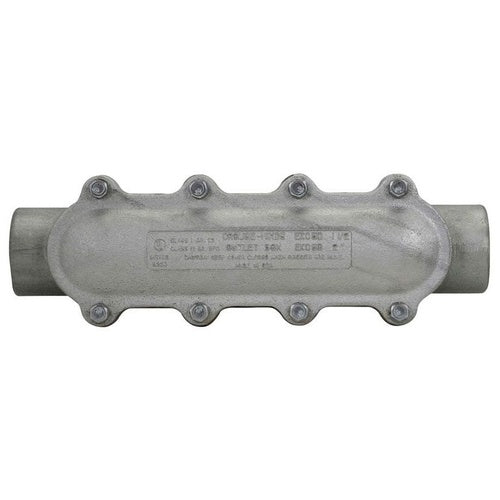

Crouse-Hinds EKC30 1" Ekc-Body

Overview

Crouse-Hinds EKC30 1" Ekc-Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET EKC CONDUIT OUTLET BODY WITH COVER, FERALOY IRON ALLOY, 1"
• Full Technical Description: Feraloy Iron Alloy Material; 12-5/8 Inch Length X 4 Inch Width X 3-7/16 Inch Height Size; Electrogalvanized Acrylic Painted Finish; 1 Inch Hub Size; C Configuration; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Explosionproof, Dust Ignitionproof; Straight Hub Location; Side Access Opening; CONDULET[R] Brand; Includes Cover; Used on Threaded Rigid Conduit; Application Hazardous Location; Applicable Standard NEC; EKC Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39121332
• UPC 12 Digit: 782274305509
• SKU Name: crsh ekc30
