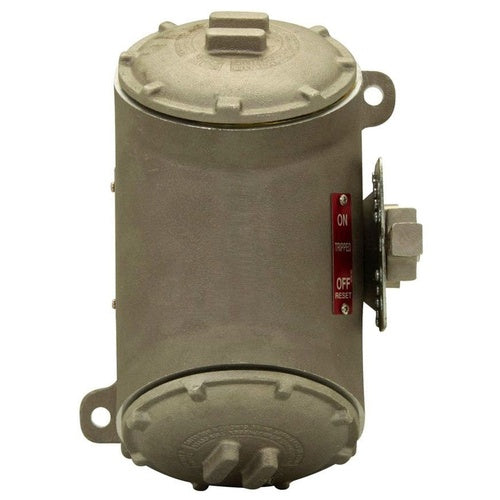

Crouse-Hinds FLB115-WT40-3 600V 40A Enclosed Circuit Breaker

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES FLB CIRCUIT BREAKER, 40A, FDB FRAME TYPE, THERMAL MAGNETIC, THREADED COVER CONSTRUCTION, COPPER-FREE ALUMINUM, CUTLER-HAMMER BREAKER, THREE-POLE, NON-INTERCHANGEABLE TRIP, 1-1/4", 600 VAC
• Full Technical Description: Threaded Enclosure Type; 1-1/4 Inch Hub Size; Copper Free Aluminum Enclosure Material; 600 VAC Voltage Rating; NEMA 3/4/7C/7D/9E/9F/9G, Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 18000 Ampere at 240 VAC, 14000 Ampere at 480/600 VAC Interrupting Rating; 40 Ampere Current Rating; 3 Pole(S); Dust Ignition Proof, Explosion Proof, Rain Tight, Water Tight; Natural Enclosure Finish; Feed Through Hub Location; Fdb, Westinghouse Breaker Type; Non Interchangeable, Thermal Magnetic Trip Type; Natural Finished Copper Free Aluminum Handle, Stainless Steel Shaft Shaft/Handle Material; CROUSE-HINDS[R] Brand; Applicable Standard Nema/Eemac, Nec/Cec; FLB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Enclosed Circuit Breaker
• Unspsc: 39121601
• UPC 12 Digit: 782274018379
• SKU Name: crsh flb115wt403
