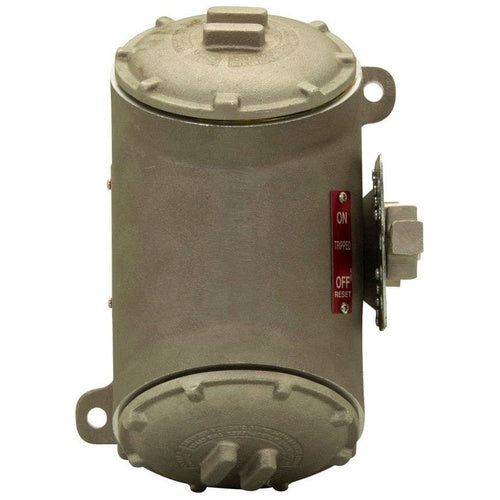

Crouse-Hinds FLB140-WT30-2 480V 30A Enclosed Circuit Breaker

Overview

Crouse-Hinds FLB140-WT30-2 480V 30A Enclosed Circuit Breaker

Product Specifications

• Full Technical Description: Threaded Enclosure Type; 1 Inch Hub Size; Copper Free Aluminum Enclosure Material; 480 Vac/250 VDC Voltage Rating; NEMA 3/4/7C/7D/9E/9F/9G, Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 18000 Ampere at 240 VAC, 14000 Ampere at 480 VAC Interrupting Rating; 30 Ampere Current Rating; 2 Pole(S); Dust Ignition Proof, Explosion Proof, Rain Tight, Water Tight; Natural Enclosure Finish; Feed Through Hub Location; Ehd, Westinghouse Breaker Type; Non Interchangeable, Thermal Magnetic Trip Type; Natural Finished Copper Free Aluminum Handle, Stainless Steel Shaft Shaft/Handle Material; CROUSE-HINDS[R] Brand; Applicable Standard Nema/Eemac, Nec/Cec; FLB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Enclosed Circuit Breaker
• UPC 12 Digit: 782274019598
• SKU Name: crsh flb140wt302

Resources

• Manufacturer Spec Sheet
