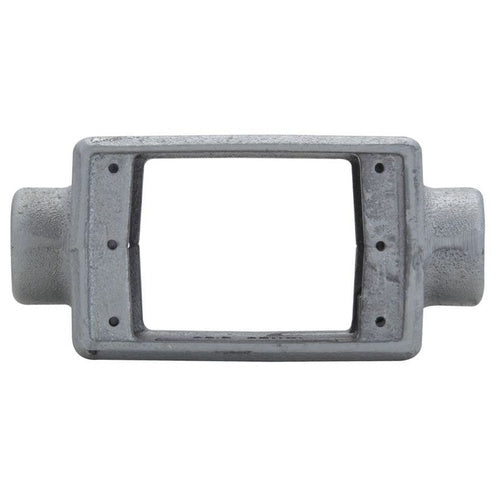

Crouse-Hinds FSC252 1-Gang Fsc-Box

Overview

Crouse-Hinds FSC252 1-Gang Fsc-Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FS DEVICE BOX, SHALLOW, DOUBLE FACE, FERALOY IRON ALLOY, SINGLE-GANG, C SHAPE, 3/4"
• Full Technical Description: Double Face Type; Electrogalvanized Aluminum Acrylic Painted Iron Feraloy Material; 2-3/4 Inch; 6-1/16 Inch; 3-11/16 Inch; Shallow Shape; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514A, CSA 22.2 Approval; Flush Mounting; Not Included Mounting Hardware; (1) Each End Hub Location; FSC Configuration Type; CONDULET[R] Brand; Applicable Standard ANSI C33.84, Federal Specification W-C-5860; Conduit Type Threaded Rigid; Hub Type Tapered Threaded; Includes Ground Screw; FSC Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 782274411804
• SKU Name: crsh fsc252

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
