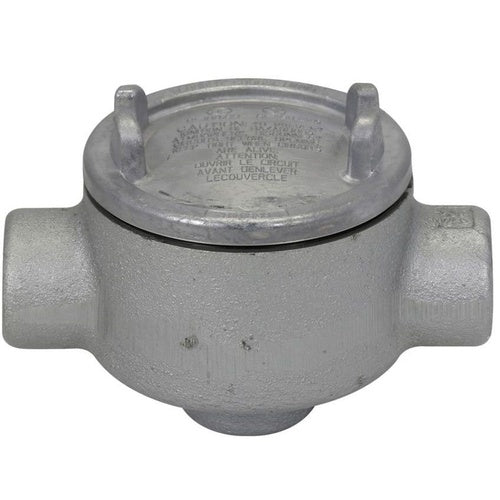

Crouse-Hinds GUAD26 3/4" Guad Conduit Body & Cover

Overview

Crouse-Hinds GUAD26 3/4" Guad Conduit Body & Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET GUA CONDUIT OUTLET BOX WITH COVER, 3" COVER OPENING DIAMETER, FERALOY IRON ALLOY, D SHAPE, 3/4"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Natural Copper-Free Aluminum (Cover) Material; Round Shape; 3/4 Inch Hub Size; 3 Hub(S); UL 1203, CSA C22.2 Approval; (4) Pad Mounting; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Externally Threaded Cover Type; Ea Style; (2) Sides, (1) Down Hub Location; External Hub Type; 3 Inch Cover Opening Diameter; CONDULET[R] Brand; Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Includes Cover, Grounding Screw; Application General Purpose Wiring, Pulling of Wire, Connect Conduit Length and Change Direction of Conduit Run, Provide Access For Maintenance; Applicable Standard ANSI C33.27; GUA Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 782274463209
• SKU Name: crsh guad26
