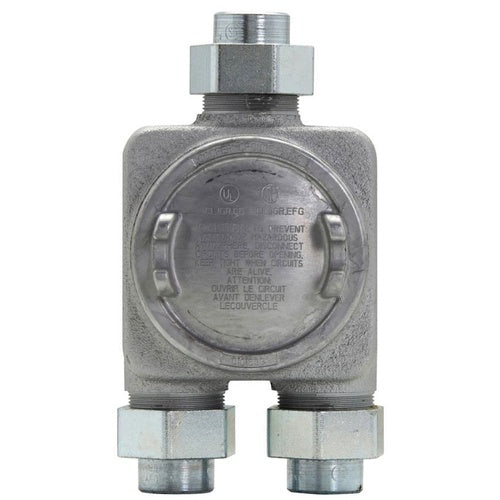

Crouse-Hinds GUAG7875 Junction Box W/Hub

Overview

Crouse-Hinds GUAG7875 Junction Box W/Hub

Product Specifications

• Full Technical Description: 3-3/4 Inch Length X 3-3/4 Inch Width X 1-15/16 Inch Depth Overall Size; (2) 3/4 Inch, (1) 1 Inch Hub Size; 3 Hub(S); UL 1203, CSA C22.2 Approval; Strap Mounting; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III Enclosure; Externally Threaded Cover Type; Feraloy Iron Alloy Body Material; Copper-Free Aluminum Cover Material; (1) Top, (2) Bottom Hub Location; Electrogalvanized Aluminum Acrylic Painted Body Finish; 3 Inch Cover Opening Diameter; Natural Cover Finish; Constructional Feature Explosionproof, Dust Ignitionproof; Includes Cover, Nut, Sleeve; Application Indoor/Outdoor, Gasoline Pump; GUA Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• UPC 12 Digit: 782274744902
• SKU Name: crsh guag7875

Resources

• Manufacturer Spec Sheet
