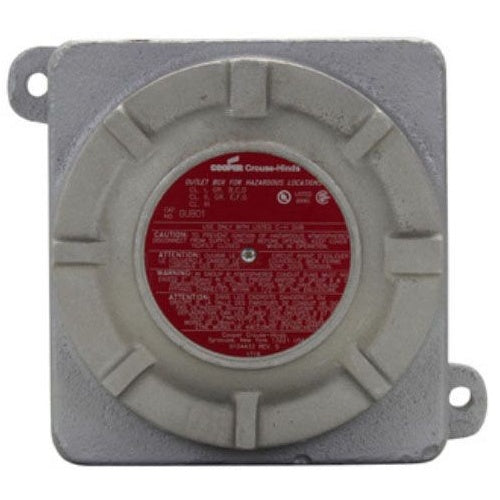

Crouse-Hinds GUB02-SA Alum Junction Box

Overview

Crouse-Hinds GUB02-SA Alum Junction Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES GUB JUNCTION BOX, 7" COVER OPENING, 8" X 10" X 5-7/8", COPPER-FREE ALUMINUM
• Full Technical Description: 5-7/8 Inch X 8 Inch X 10 Inch Overall Size; 7-1/8 Inch W X 4-5/8 Inch D X 9-1/8 Inch H Inner Size; UL 886, CSA C22.2 Approval; Feet Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 4/7B/7C/7D/9E/9F/9G Enclosure; Copper Free Aluminum Body Material; Copper Free Aluminum Cover Material; Natural Body Finish; 7 Inch Cover Opening Diameter; Natural Cover Finish; CROUSE-HINDS[R] Brand; Applicable Standard CEC, NEC, Nema/Eemac; With Neoprene O-ring; GUB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121331
• UPC 12 Digit: 782274469812
• SKU Name: crsh gub02sa
