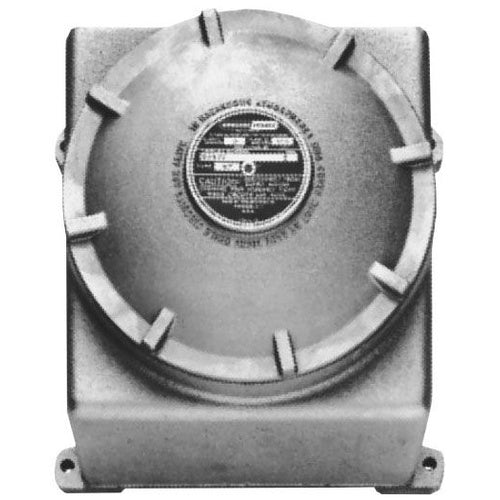

Crouse-Hinds GUB03-SA Alum Junction Box

Overview

Crouse-Hinds GUB03-SA Alum Junction Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES GUB JUNCTION BOX, 9-5/8" COVER OPENING, 11" X 12" X 8-13/16", COPPER-FREE ALUMINUM
• Full Technical Description: 12 Inch L X 11 Inch W X 8-13/16 Inch D Overall Size; 10-3/4 Inch L X 9-3/4 Inch W X-7-3/8 Inch D Inner Size; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 4/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Threaded Cover Type; Copper Free Aluminum Body Material; Copper Free Aluminum Cover Material; Electrogalvanized Aluminum Acrylic Painted Body Finish; 9-5/8 Inch Cover Opening Diameter; Natural Cover Finish; Constructional Feature Explosionproof, Dust-Ignitionproof, Raintight, Watertight; Application Wet Location; GUB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121331
• UPC 12 Digit: 782274469911
• SKU Name: crsh gub03sa

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
