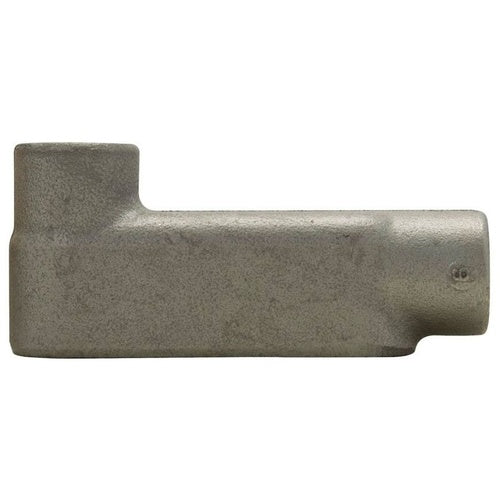

Crouse-Hinds LB78 2-1/2" Lb-Type Conduit Body

Overview

Crouse-Hinds LB78 2-1/2" Lb-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 8 CONDUIT OUTLET BODY, FERALOY IRON ALLOY, LB SHAPE, 2-1/2"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body) Material; 13-15/16 Inch Length X 5 Inch Width X 6-1/8 Inch Height Size; Rigid Conduit Used on; 2-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514B/50E, CSA C22.2 Approval; Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy, Stainless Steel Cover Screw Cover Type; 90 Degree Hub Location; Form 8 Form Type; Back Access Opening; CONDULET[R] Brand; Enclosure Rating NEMA 3R/12; Application Non-Hazardous Location; Applicable Standard Federal Specification WC-586D, Nec/Cec; LB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274516004
• SKU Name: crsh lb78
