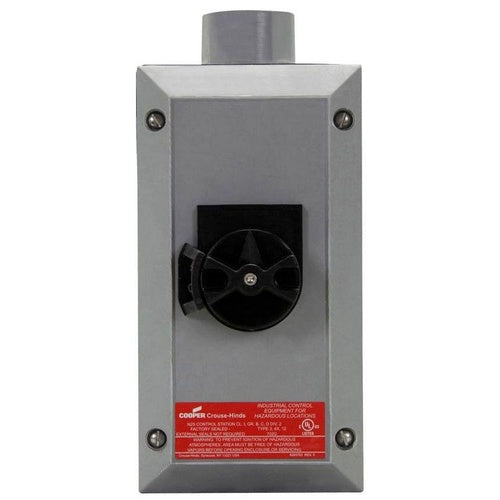

Crouse-Hinds N2S2124 3-Position Control Station

Overview

Crouse-Hinds N2S2124 3-Position Control Station

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES N2S SELECTOR SWITCH CONTROL STATION, WITH SELECTOR SWITCH, KRYDON FIBERGLASS-REINFORCED POLYESTER, SINGLE-GANG, DEAD END, THREE-POSITION, FOUR-CIRCUIT, 3/4"
• Full Technical Description: Selector Switch Type; Corrosion Resistant VESTAMID[T] Material; Black Finish; 8NO-4NC Contact Configuration; 600 VAC Contact Rating; UL 508, CSA C22.2 Approval; NEMA 3/4X/7/12, IP66, Class I Div 2 Group B C D, Class I Zone 1 and 2, Class II Div 2 Group F G Enclosure; 3 Position Selector Switch Knob Operator Type; 1 Element(S); 3/4 Inch Dead End Hub Cable/Conduit Entry; Crouse-Hinds. Brand; Application Chemical Plant, Corrosive/Damp/Wet Location, Indoor/Outdoor, Petroleum Refinery, Process Industry; N2SU Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Heavy Duty Control Station
• Unspsc: 39122217
• UPC 12 Digit: 782274802459
• SKU Name: crsh n2s2124

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
