Product information
Overview

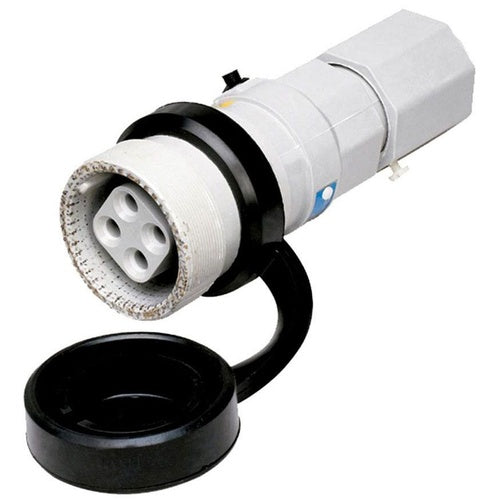

Crouse-Hinds NPR6464 3W-4P Receptacle
Product Specifications
- Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NPR CONNECTOR, 60A, THREE-WIRE, FOUR-POLE, 0.75-1.07", 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, 600 VAC/250 VDC
- Full Technical Description: Circuit Breaking, Conveyor, Motor, Pump, Welder Type; Natural Finished Krydon Fiberglass Reinforced Polyester Material; 0.75 Inch min. Cable Outer Diameter; 1.07 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682, CSA C22.2 Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant; 2, Extra Pole Grounding Style; ARKTITE[R] Brand; Enclosure Type NEMA 4X; Hub Size 1-1/4 Inch; NPR Model
- Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
- Sub Category: Pin and Sleeve Connector
- Unspsc: 39121406
- UPC 12 Digit: 782274746098
- SKU Name: crsh npr6464
