Product information
Overview

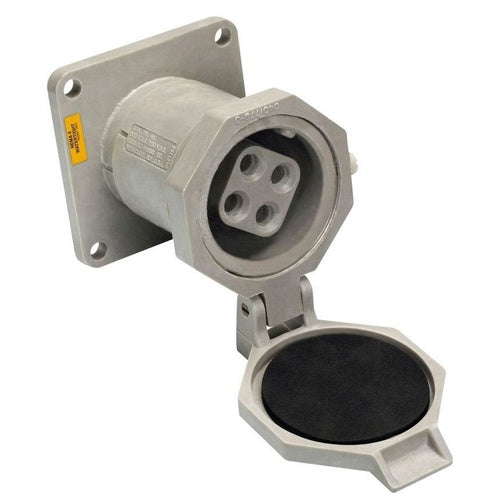

Crouse-Hinds NR332 2W-3P Receptacle
Product Specifications
- Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NR RECEPTACLE, 30A, TWO-WIRE, THREE-POLE, 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, SNAP-ON CAP/SPRING DOOR, 600 VAC/250 VDC
- Full Technical Description: Polarized Type; Natural (Gray) Finished Krydon Fiberglass-Reinforced Polyester Material; 2 Wire(S); Industrial Grade; UL 1682, CSA C22.2 Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 30 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Watertight; Snap-on Cap/Spring Door; 2, Extra Pole Grounding Style; ARKTITE[R] Brand; Application Wet/Damp Location; Material Natural Finished Neoprene (Gaskets and O-Rings), Nylon (Cable Clamping Basket), Brass (Pressure Contacts), Molded Elastomer (Snap-on Cap), Copper-Free Aluminum (Back Box); Enclosure Type NEMA 4X; NR Model
- Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
- Sub Category: Pin and Sleeve Receptacle
- Unspsc: 39121406
- UPC 12 Digit: 782274254326
- SKU Name: crsh nr332
