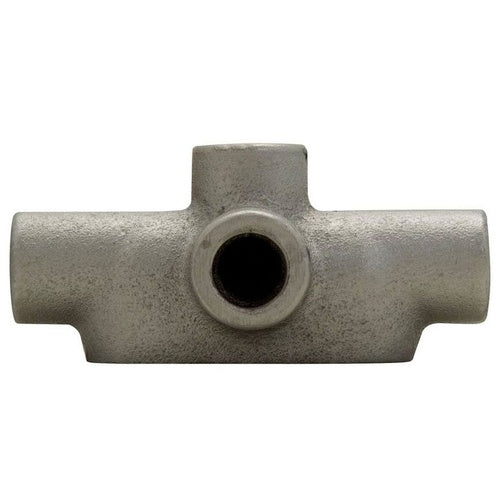

Crouse-Hinds TA57 1-1/2" Ta-Type Conduit Body

Overview

Crouse-Hinds TA57 1-1/2" Ta-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 7 CONDUIT OUTLET BODY, FERALOY IRON ALLOY, TA SHAPE, 1-1/2"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Solid Neoprene (Gasket), Stainless Steel (Screw) Material; 8-3/16 Inch L X 3-9/16 Inch W X 3-11/16 Inch H Size; Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; Ta Configuration; 4 Hub(S); UL 514B, CSA 22.2 Approval; Snaptight, Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Cover Type; Tee Back Hub Location; Form 7 Form Type; Side Access Opening; CONDULET[R] Brand; Applicable Standard Federal Specification WC-586D
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274630502
• SKU Name: crsh ta57

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
