Overview

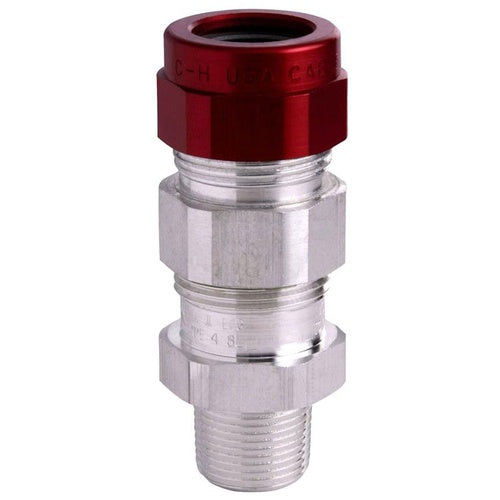

Crouse-Hinds TMCX3112 1" Cord Grips

Product Specifications

• UPC: 78227441468.0
• Aluminum Material
• 4.063 Inch
• Metal Clad, TECK Armored, Non-Armored, Tray Cable Type
• 0.85 to 1.313 Inch Cable Size
• UL, CSA Approval
• 2 Inch Diameter
• Class I Div 1 Group A B C D, Class II, Class III, NEMA 4, IP56 Enclosure
• 1 Inch NPT Trade Size
• Catalog Description: EATON CROUSE-HINDS SERIES TMCX CABLE GLAND,METAL-CLADCORRUGATED,TECK ARMOURED AND TRAY CABLE,ARMOURED BARRIER AND NON-ARMOURED BARRIER, ALUMINUM, OUTER SHEATH:0.85-1.31", 1" NPT,ARMOR RANGE:0.80-1.12"
• SKU Name: CRSH TMCX3112
