Overview

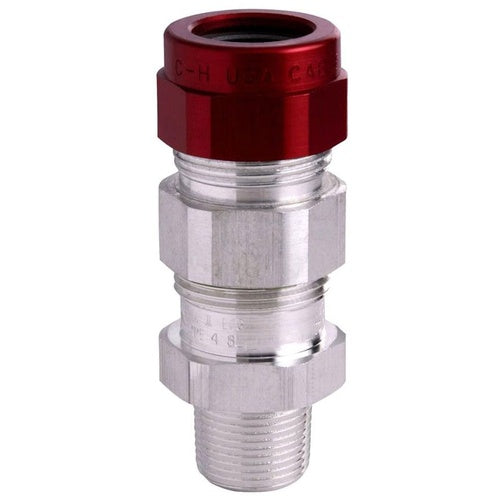

Crouse-Hinds TMCX7247 2-1/2" Cord Grips

Product Specifications

• UPC: 78227441473.0
• Aluminum Material
• 7.501 Inch
• Metal Clad, TECK Armored, Non-Armored, Tray Cable Type
• 1.99 to 2.719 Inch Cable Size
• UL, CSA Approval
• 4 Inch Diameter
• Class I Div 1 Group A B C D, Class II, Class III, NEMA 4, IP56 Enclosure
• 2-1/2 Inch NPT Trade Size
• Catalog Description: EATON CROUSE-HINDS SERIES TMCX CABLE GLAND,METAL-CLADCORRUGATED,TECK ARMOURED AND TRAY CABLE,ARMOURED BARRIER AND NON-ARMOURED BARRIER, ALUMINUM, OUTER SHEATH:1.99-2.72", 2-1/2" NPT,ARMOR RANGE:1.93-2.47"
• SKU Name: CRSH TMCX7247
