Overview

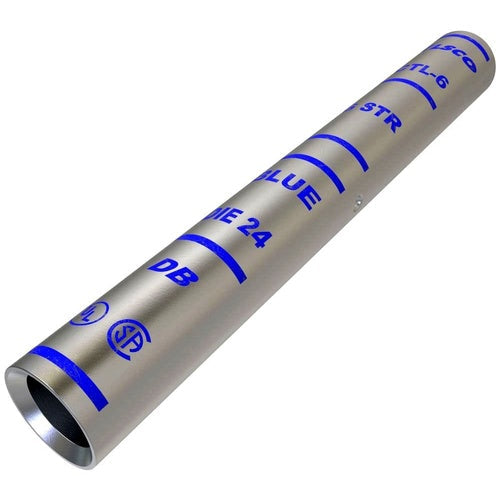

Ilsco CTL6 Compression Barrel Splice #6Str-#6Str

Product Specifications

• UPC: 78366912755
• Length: 2.375 Inch
• Inner Diameter: 0.203 Inch
• Outer Diameter: 0.295 Inch
• Body Material: Electro-Tin Plated High Strength Seamless Copper
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Application Grounding and Bonding; Temperature Rating 90 Deg C; Packaging Quantity 50
• Catalog Number: CTL-6
• Model: CTL
• Type: Center Wire Stop
• Voltage Rating: 35 KV
• Conductor Size: 6 AWG
• Conductor Material: Copper
• Color Code: Blue
• Barrel Type: Long with Chamfered End
• Catalog Description: SURECRIMP COPPER COMPRESSION SLEEVE, CONDUCTOR SIZE 6, LONG BARREL, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Center Wire Stop Type; 2.375 Inch; 0.203 Inch Inner Diameter; 0.295 Inch Outer Diameter; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 35 kV Voltage Rating; Electro-Tin Plated High Strength Seamless Copper Body Material; 6 AWG Conductor Size; Blue Color Code; Long With Chamfered End Barrel Type; Surecrimp [R] Brand; Application Grounding and Bonding; Temperature Rating 90 Deg C; Packaging Quantity 50; CTL Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783669127553
• SKU Name: ctl6 ilsco
